Sporting a compact 1RU form-factor, the DVStation-Mini² DVB-T features a very small footprint both in terms of physical size and power consumption.

Monitoring 24/7 and with measurement accuracy similar to very expensive lab test equipment, broadcasters can rest easy knowing their transmission system is working like the day it was commissioned.

Automated alarms and in-depth analysis of both the ingress signal and the transmitter output allows you to quickly identify and isolate errors. With class-leading transport stream analysis features such as On-Air Content Validation and confidence monitoring of video services, the DVStation-Mini² DVB-T will be shared by the distribution and operations team in ensuring that their network is humming along smoothly.

The DVProbe-S2 is a compact and comprehensive monitoring solution for DVB-S2 networks.

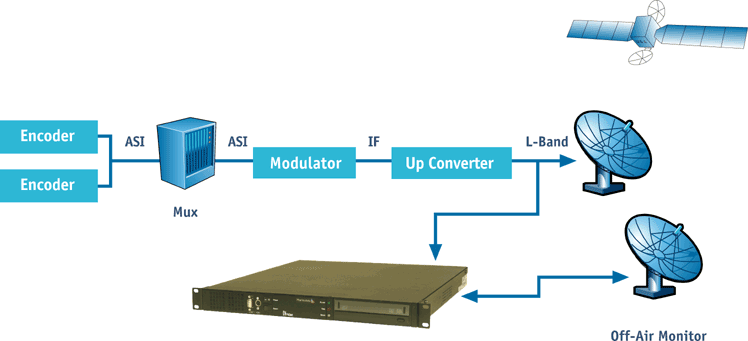

With comprehensive RF monitoring with TS analysis, the DVProbe-S2 can be used to verify service availability in DTH networks as well as for point-to-point transmissions. Support for extended modulation options and H.264 video services makes the DVProbe-S2 a future proof investment.

Key features:

• Verify service availability in the satellite footprint


• RF + TS analysis in one single 1RU box


• 45 MSyms, 16APSK or 32APSK


• In-depth TS analysis


• Supports H.264 HD/SD video services


• Integrates easily with your NMS with SNMP



DVProbe-S2 also support both pilot and no pilot mode, modulation fidelity analysis via SNR and MER, constellation visualization, long-term logging of all measurements, multiple configuration profiles and round-robin scheduler for monitoring multiple transponders and multi-user remote access over LAN, internet or modem connection.
